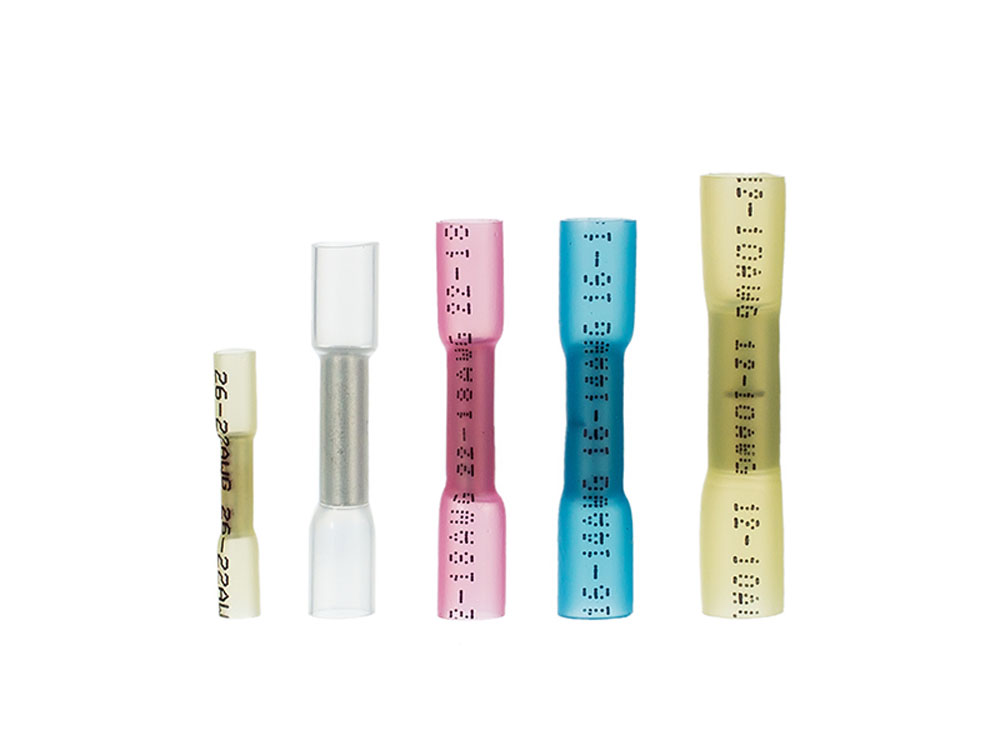

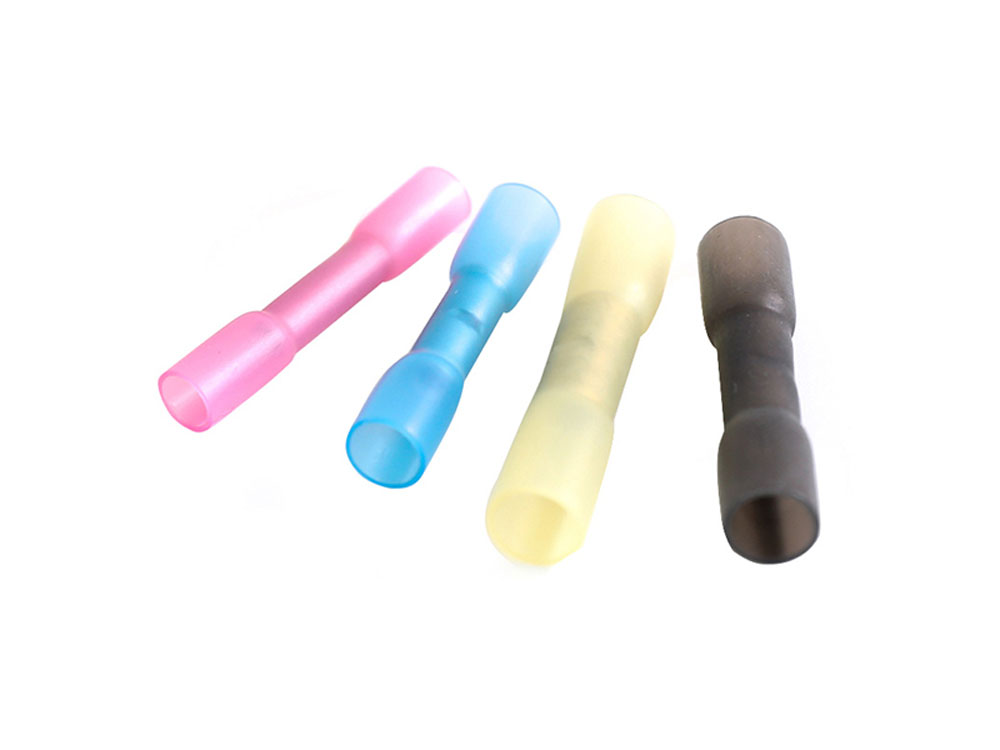

防水热缩中接端子
防水热缩中接端子
应用
HSC是由聚烯烃和热熔胶复合而生成的热收缩套管，用于保护连接、防水防腐蚀，可以在粗糙的环境中加强固定和防震动，具有很好的绝缘保护电子连接器的功能。与常规的连接器相比，具有耐久性、易于安装、安装成本低的优势。
特性 收缩率3：1 优异的防水性能 材料优异的延伸性能，抗机械损害 透明度佳，提高更好的抗拉力 高弹性能，管材不易变形 | 操作温度范围 操作温度: -55℃～125℃ 开始收缩温度: 80℃ 最低完全收缩温度: 130℃ |
性能参数
Test Item | Characteristics | Test condition | |
Unaged | Tensile strength | Min. 18MPa | Room temp. |
Elongation | Min. 200% | ||
Aged | Tensile strength | Min. 11.5MPa | 150℃/7 days |
Elongation | Min. 100% | ||
Voltage withstand and breakdown Voltage(Unaged) | Withstand 2.5 KV for 1minute and breakdown | Room temp. | |
Voltage withstand and breakdown Voltage(Aged) | Withstand 2.5 KV for 1minute and breakdown at least half of unaged breakdown voltage | 150℃/7 days | |
Copper corrosion | No corrosion of bare copper | 150℃/7 days | |
Copper stability | No sign of degradation Min.Elongation 100% | 150℃/7 days | |
Cold bend | No crack | -40℃/4 hrs | |
Maximum secant modulus(2%) | 250 MPa | - | |
Volume resistivity | Min.1014Ω-cm | - | |
Heat shock | No crack | 200℃/4 hrs | |
产品规格
Part. No |
Wire Range |

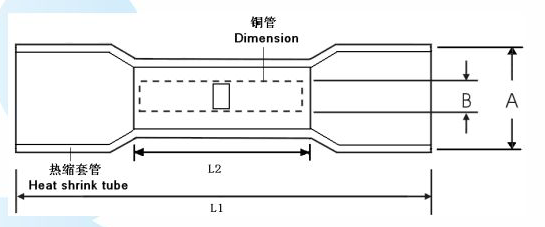

Dimension（mm） | Heat shrink tube（mm） |
Insulator |
Color |
Approval | |||||
A.W.G | mm2 | OD | B | L2 | OD | A | L1 | ||||
HSC-0.5 | 26-22 | 0.2-0.5 | 2.1 | 1.3 | 10 | 4.1 | 3.2 | 26.0 | PE | Yellow | RoHS |
HSC-1 | 22-18 | 0.5-1.0 | 3.3 | 1.7 | 15 | 5.9 | 4.7 | 36.0 | PE | Red | RoHS |
HSC-2 | 16-14 | 1.5-2.5 | 4.0 | 2.4 | 15 | 7.1 | 5.7 | 36.0 | PE | Blue | RoHS |
HSC-3 | 12-10 | 4.0-6.0 | 5.5 | 3.5 | 15 | 8.0 | 6.7 | 42.0 | PE | Yellow | RoHS |
HSC-3.5 | 14-12 | 2.5-4 | 5.5 | 4.1 | 20 | 7.8 | 6.5 | 38 | PE | Black | RoHS |
HSC-3.5(薄) | 14-12 | 2.5-4 | 5.4 | 4.3 | 15 | 7.8 | 6.5 | 38 | PE | Black | RoHS |
HSC-8 | 8 | 10 | 7.0 | 5.8 | 21 | 9.5 | 8.0 | 42.0 | PE | Yellow | RoHS |
