高透明中接端子
高透明中接端子

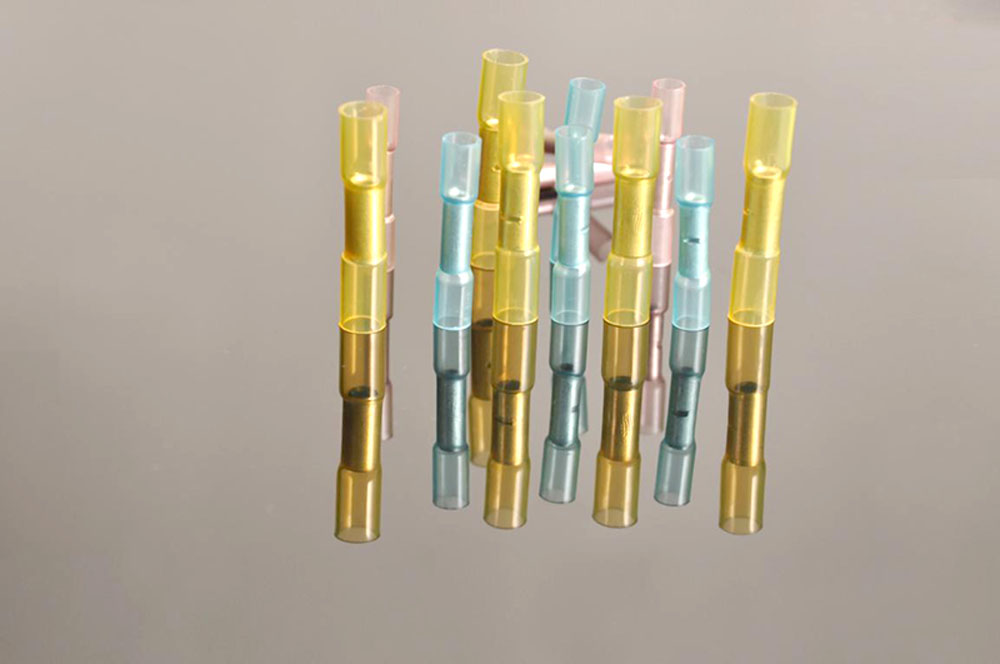

应用
HCS-H是由聚烯烃和热熔胶复合而生成的热收缩套管，对PVC,PE,金属粘接力强，用于保护连接、防水防腐蚀，可以在粗糙的环境中加强固定和防震动，具有很好的绝缘保护电子连接器的功能。与常规的连接器相比，具有耐久性、易于安装、安装成本低的优势。
特性 收缩率3：1 含热熔胶具防水性能 材料优异的延伸性能，抗机械损害 透明度佳及良好的外管 高弹性能，管材不易变形 | 操作温度范围 操作温度: -40℃～105℃ 开始收缩温度: 60℃ 最低完全收缩温度: 100℃ |
性能参数
Test Item | Characteristics | Test condition | |
Unaged | Tensile strength | Min. 18MPa | Room temp. |
Aged
| Elongation | Min. 200% | |
Tensile strength | Min. 11.5MPa | 150℃/7 days | |
Elongation | Min. 100% | ||
Voltage withstand and breakdown Voltage(Unaged) | Withstand 2.5 KV for 1minute and breakdown | Room temp. | |
Voltage withstand and breakdown Voltage(Aged) | Withstand 2.5 KV for 1minute and breakdown at least half of unaged breakdown voltage | 150℃/7 days | |
Copper corrosion | No corrosion of bare copper | 150℃/7 days | |
Copper stability | No sign of degradation Min.Elongation 100% | 150℃/7 days | |
Cold bend | No crack | -40℃/4 hrs | |
Heat shock | No crack | 200℃/4 hrs | |
产品规格
Part. No |
Wire Range | Copper Pipe | Heat shrink tube |
Insulator |
Color |
Approval | |||||

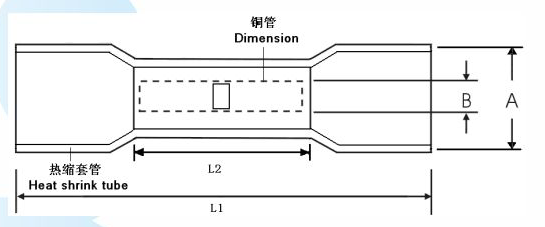

A.W.G | mm² | OD | ID | L2 | OD | ID | L1 | ||||
HSC-H-1 | 22-18 | 0.5-1.0 | 3.8 | 1.7 | 15 | 6.1 | 5.0 | 36.0 | PE | Red | RoHS |
HSC-H-2 | 16-14 | 1.5-2.5 | 4.8 | 2.4 | 15 | 7.2 | 6.0 | 36.0 | PE | Blue | RoHS |
HSC-H-3 | 12-10 | 4.0-6.0 | 5.7 | 3.6 | 15 | 8.3 | 7.0 | 42.0 | PE | Yellow | RoHS |
