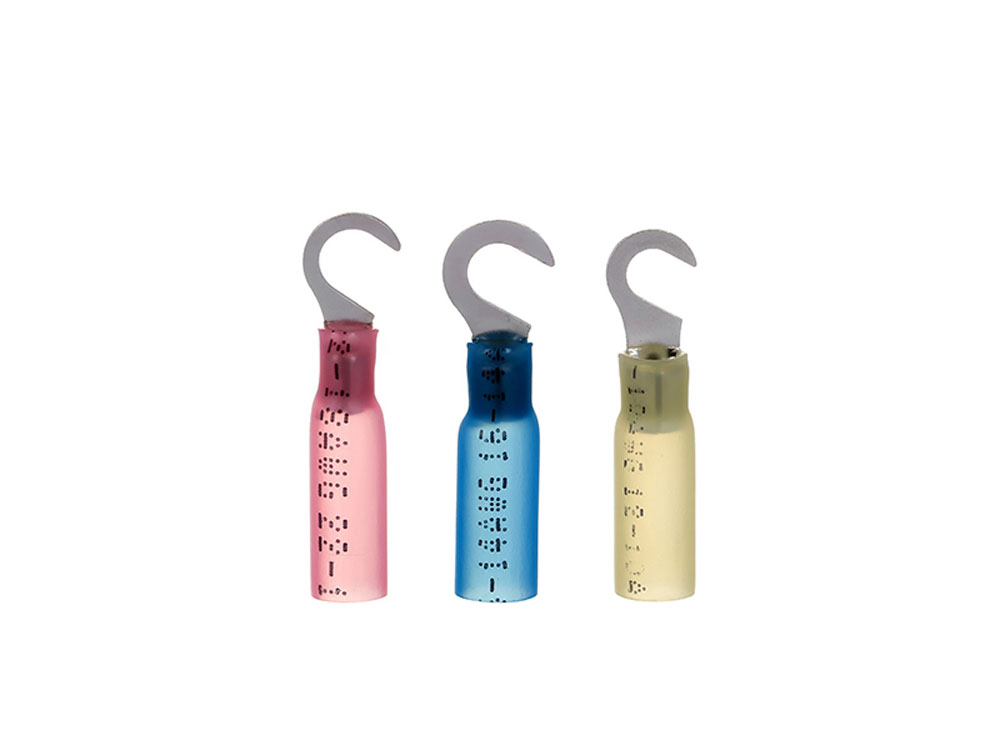

热缩钩形端子
热缩钩形端子
应用
HSHVT是由聚烯烃和热熔胶复合生产而成的热收缩套管，用于保护连接、防水防腐蚀，可以在粗糙的环境中加强固定和防震动，具有很好的绝缘保护电子连接器的功能。与常规的连接器相比，具有耐久性、易于安装、安装成本低的优势。
特性 收缩率3：1 材料优异的延伸性能，抗机械损害 透明度佳，提高更好的抗拉力 高弹性能，管材不易变形 | 操作温度范围 操作温度: -55℃～125℃ 开始收缩温度: 80℃ 最低完全收缩温度: 130℃ |
性能参数
Test Item | Characteristics | Test condition | |
Unaged | Tensile strength | Min. 18MPa | Room temp. |
Elongation | Min. 200% | ||
Aged | Tensile strength | Min. 11.5MPa | 150℃/7 days |
Elongation | Min. 100% | ||
Voltage withstand and breakdown Voltage(Unaged) | Withstand 2.5 KV for 1minute and breakdown | Room temp. | |
Voltage withstand and breakdown Voltage(Aged) | Withstand 2.5 KV for 1minute and breakdown at least half of unaged breakdown voltage | 150℃/7 days | |
Copper corrosion | No corrosion of bare copper | 150℃/7 days | |
Copper stability | No sign of degradation Min.Elongation 100% | 150℃/7 days | |
Cold bend | No crack | -40℃/4 hrs | |
Maximum secant modulus(2%) | 250 MPa | - | |
Volume resistivity | Min.1014Ω-cm | - | |
Heat shock | No crack | 200℃/4 hrs | |

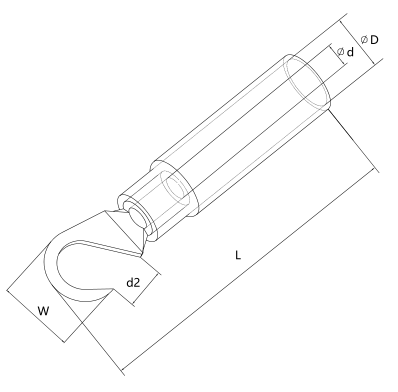

产品规格
Part. No |
Wire Range |
Stud Size(mm) | （mm） | Length（mm） |
Insulator |
Color | ||||
A.W.G | mm2 | Size | d | d2 | D | W | L | |||
HV 1.25-5 | 22-18 | 0.5-1.0 | #10 | 1.5 | 5.3 | 4.7 | 8.0 | 32 | PE | Red |
HV 2-5 | 16-14 | 1.5-2.5 | #10 | 2.4 | 5.3 | 5.7 | 9.5 | 33 | PE | Blue |
HV 5.5-5 | 12-10 | 4.0-6.0 | #10 | 3.4 | 5.3 | 6.7 | 9.5 | 38 | PE | Yellow |
